QSC-10 De-stoner

  • QSC-10 De-stoner

Short Description:

QSC Blowing Style De-stoner can separate stone, clod from grain seeds by adjusting wind pressure, amplitude and other parameter.


Product Detail

Production Case

destoner

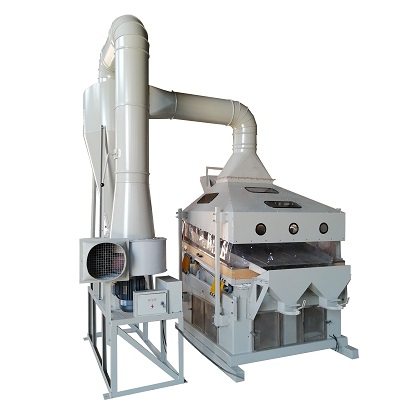

QSC-10 De-stoner:
QSC Blowing Style De-stoner can separate stone, clod from grain seeds by adjusting wind pressure, amplitude and other parameter.

 The stone with large gravity lowers to the bottom and moves from low to high close to the screen surface; the material with small gravity suspends on the surface and moves from high to low to achieve the separation. With internal fans, no need to install wind net system, The Fans and vibration system is equipped with different motors, noninterference adjustment; vibration part motor with a transducer, which using different frequency for small particles of material (millet), medium materials (mung bean, soybean), large granular materials (kidney beans, broad beans) to achieve the best good effect to remove stone.

destoner
destoner

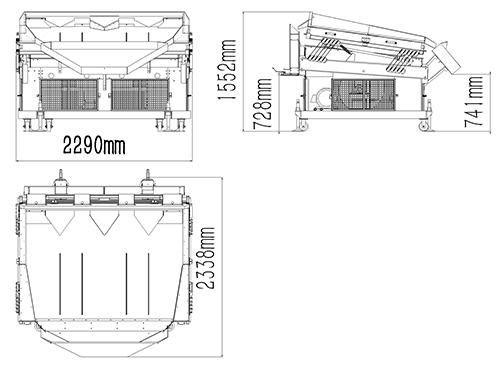

De-stoner technical parameter:

Name  Model

Sieve size (mm)

Power(kw)

Capacity (T/H)

Weight(T)

Overall size L x W x H (mm)

Remark

De-stoner QSC-10 2200 x 1530 8.6 10 1.27 2300 x 2290 x 1550  with transducer
